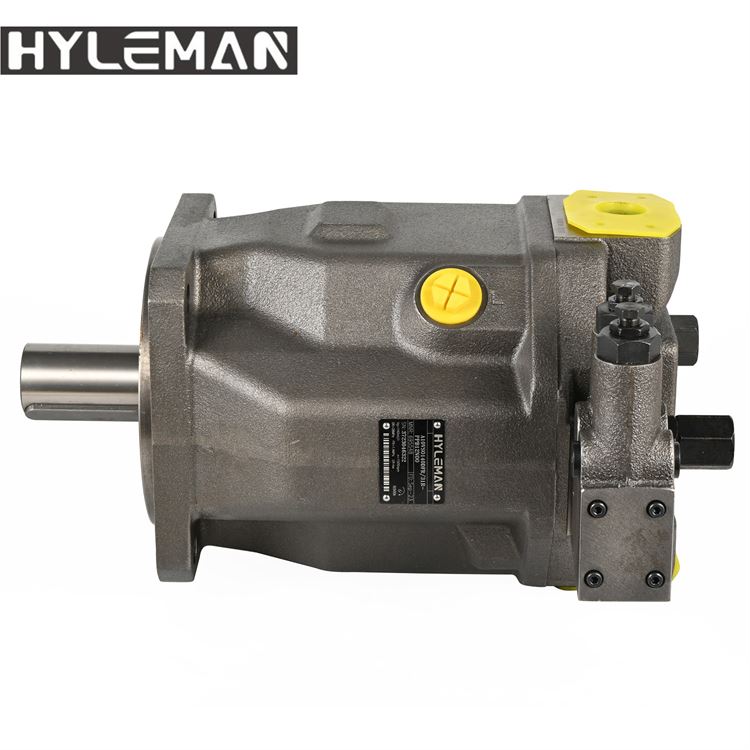

Pam Omboh Anjakan Boleh Ubah Hidraulik
Pam omboh anjakan pembolehubah hidraulik siri Rexroth A10VSO 30 31 52 53.
Semua produk HYLEMAN adalah setara sepenuhnya dan boleh ditukar ganti dengan yang asli.
Ciri-ciri
1. Pam boleh ubah dengan kumpulan putar omboh paksi dalam reka bentuk plat swash untuk pemacu hidrostatik dalam litar terbuka.
2. Aliran adalah berkadar dengan kelajuan pemacu dan anjakan.
3. Aliran boleh diubah tak terhingga dengan melaraskan sudut plat swash.
4. 2 lubang longkang
5. Prestasi sedutan yang sangat baik
6. Tahap hingar yang rendah
7. hayat perkhidmatan yang panjang
8. Nisbah kuasa/berat yang menggalakkan
9. Pelbagai pengawal serba boleh
11. Masa kawalan yang singkat
12. Pemacu melalui sesuai untuk menambah pam gear dan pam omboh paksi sehingga saiz yang sama, iaitu, 100% melalui pemacu.
13. Sesuai untuk operasi dengan minyak mineral dan cecair hidraulik HF.
Gambar terperinci
Penerangan Model
| Taip kod | |||||||||||||||||||||||||
| Taip kod | |||||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | |||||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | ||||||||||||||||||||
| Versi 18 28 45 71 88 100 140 | |||||||||||||||||||||||||
| 1 | Versi standard (tanpa kod) | ||||||||||||||||||||||||
| Versi berkelajuan tinggi (dimensi luaran adalah sama dengan versi standard) | - | - | - | H | |||||||||||||||||||||
| Unit omboh paksi | |||||||||||||||||||||||||
| 2 | Reka bentuk swashplate, berubah-ubah, tekanan nominal 280 bar, tekanan maksimum 350 bar | - | - | - | - | - | - | A10VS | |||||||||||||||||
| - | A10V | ||||||||||||||||||||||||
| Mod pengendalian | |||||||||||||||||||||||||
| 3 | Pam, litar terbuka | O | |||||||||||||||||||||||
| Saiz (NG) | |||||||||||||||||||||||||
| 4 | Anjakan geometri, lihat jadual nilai pada halaman 6 dan 7 | 18 | 28 | 45 | 71 | 88 | 100 | 140 | |||||||||||||||||
| Peranti kawalan | |||||||||||||||||||||||||
| 5 | Kawalan dua mata, dikendalikan secara langsung | DG | |||||||||||||||||||||||
| Pengawal tekanan hidraulik | DR | ||||||||||||||||||||||||
| dengan pengawal aliran hidraulik | XT dibuka | DFR | |||||||||||||||||||||||
| XT dipalamkan dengan fungsi pembilasan | DFR1 | ||||||||||||||||||||||||
| XT dipalamkan tanpa fungsi pembilasan | DRSC | ||||||||||||||||||||||||
| dengan kawalan tekanan aliran dan pembezaan, pembolehubah elektrik | EF1) | ||||||||||||||||||||||||
| dengan pemotongan tekanan | kawalan jauh hidraulik | DRG | |||||||||||||||||||||||
| kawalan negatif elektrik | U = 12 V | ED71 | |||||||||||||||||||||||
| U = 24 V | ED72 | ||||||||||||||||||||||||
| kawalan positif elektrik | U = 12 V | ER71 | |||||||||||||||||||||||
| U = 24 V | ER72 | ||||||||||||||||||||||||
| Kawalan kuasa aliran tekanan | - | DFLR | |||||||||||||||||||||||
| Siri | |||||||||||||||||||||||||
| 6 | Siri 3, indeks 1 | 31 | |||||||||||||||||||||||
| Arah putaran | |||||||||||||||||||||||||
| 7 | Dilihat pada aci pemacu | mengikut arah jam | R | ||||||||||||||||||||||
| lawan arah jam | L | ||||||||||||||||||||||||
| Bahan pengedap | |||||||||||||||||||||||||
| 8 | FKM (fluoroelastomer) | V | |||||||||||||||||||||||
| Aci pemacu 18 28 45 71 88 100 140 | |||||||||||||||||||||||||
| 9 | Aci berseli ANSI B92.1a | aci standard | S | ||||||||||||||||||||||
| serupa dengan aci "S" namun untuk tork input yang lebih tinggi | - | - | R | ||||||||||||||||||||||
| diameter berkurangan, kesesuaian terhad untuk melalui pemacu (lihat jadual nilai, halaman 9) | ○ | U | |||||||||||||||||||||||
| sama seperti "U", tork yang lebih tinggi; kesesuaian terhad untuk through drive (lihat jadual nilai, halaman 9) | - | W | |||||||||||||||||||||||
| Bebibir pemasangan | |||||||||||||||||||||||||
| 10 | ISO 3019-1 (SAE) | 2-lubang | C | ||||||||||||||||||||||
| 4-lubang | - | - | - | - | - | - | D | ||||||||||||||||||
| 1) Lihat helaian data 92709 | |||||||||||||||||||||||||
| Taip kod | ||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | ||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | |||||||||||||||||
| Port berfungsi 18 28 45 71 88 100 140 | ||||||||||||||||||||||
| 11 | Pelabuhan bebibir SAE mengikut J518 | Mengikat benang | bukan untuk melalui pemanduan | - | - | 11 | ||||||||||||||||
| Pelabuhan bekerja | metrik; belakang | - | - | - | - | - | 41 | |||||||||||||||
| metrik | Mengikat benang | untuk melalui pemanduan | - | 12 | ||||||||||||||||||
| metrik; sisi atas bawah | - | - | - | - | - | 42 | ||||||||||||||||
| Pelabuhan bebibir SAE mengikut J518 | Mengikat benang | bukan untuk melalui pemanduan | - | - | 61 | |||||||||||||||||
| Pelabuhan bekerja | UNF; belakang | - | - | - | - | - | 91 | |||||||||||||||
| UNF | Mengikat benang | untuk melalui pemanduan | - | 62 | ||||||||||||||||||
| UNF; sisi atas bawah | - | - | - | - | - | 92 | ||||||||||||||||
| Pemacu melalui (untuk pilihan pemasangan, lihat halaman 53) | ||||||||||||||||||||||
| 12 | ISO bebibir 3019-1 Hab untuk aci bertali2) | 18 28 45 71 88 100 140 | ||||||||||||||||||||
| Diameter Diameter | ||||||||||||||||||||||
| tanpa melalui pemanduan | N00 | |||||||||||||||||||||
| 82-2 (A) | 5/8 dalam 9T 16/32DP | K01 | ||||||||||||||||||||
| 3/4 dalam 11T 16/32DP | K52 | |||||||||||||||||||||
| 101-2 (B) | 7/8 dalam 13T 16/32DP | - | K68 | |||||||||||||||||||
| 1 dalam 15T 16/32DP | - | - | K04 | |||||||||||||||||||
| 127-2 (C) | 1 1/4 dalam 14T 12/24DP | - | - | - | K07 | |||||||||||||||||
| 1 1/2 dalam 17T 12/24DP | - | - | - | - | K24 | |||||||||||||||||
| 152-4 (D) 1 3/4 dalam 13T 8/16DP | - | - | - | - | - | K174) | ||||||||||||||||
| Penyambung untuk solenoid3) | ||||||||||||||||||||||
| 13 | Tanpa penyambung (tanpa solenoid, dengan kawalan hidraulik sahaja, tanpa kod) | |||||||||||||||||||||
| DEUTSCH - penyambung acuan, 2-pin, tanpa diod penindas | P | |||||||||||||||||||||
| = Tersedia ○=Atas permintaan -=Tidak tersedia | ||||||||||||||||||||||
| Notis | ||||||||||||||||||||||
| Perhatikan nota perancangan projek pada halaman 59. | ||||||||||||||||||||||
| Selain kod jenis, sila nyatakan data teknikal yang berkaitan semasa membuat pesanan anda. | ||||||||||||||||||||||
| A10VSO 18 siri | |
| A10VSO18DR/31R-PPA12N00 | A10VSO18DFLR/31R-PPA12N00 |
| A10VSO18DR/31R-PPA12K01 | A10VSO18DG/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12N00 | A10VSO18DRG/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12N00 | A10VSO18DFE1/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12K01 | A10VSO18FHD/31R-PPA12N00 |
| A10VSO18DFR/31R-PPA12N00 | A10VSO18ED/31R-PPA12N00 |
| A10VSO 28 siri | |
| A10VSO28DR/31R-PPA12N00 | A10VSO28DFLR/31R-PPA12N00 |
| A10VSO28DR/31R-PPA12K01 | A10VSO28DG/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12N00 | A10VSO28DRG/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12N00 | A10VSO28DFE1/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12K01 | A10VSO28FHD/31R-PPA12N00 |
| A10VSO28DFR/31R-PPA12N00 | A10VSO28ED/31R-PPA12N00 |
| Siri A10VSO 45 | |
| A10VSO45DR/31R-PPA12N00 | A10VSO45DFR/31R-PPA12K26 |
| A10VSO45DR/31R-PPA12K01 | A10VSO45DFLR/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12N00 | A10VSO45DG/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12N00 | A10VSO45DRG/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12K02 | A10VSO45DFE1/31R-PPA12N00 |
| A10VSO45DFR/31R-PPA12N00 | A10VSO45FHD/31R-PPA12N00 |
| A10VSO45DFR/31R-PPA12K01 | A10VSO45ED/31R-PPA12N00 |
| Siri A10VSO 71 | |
| A10VSO71DR/31R-PPA12N00 | A10VSO71DFR/31R-PPA12K27 |
| A10VSO71DR/31R-PPA12K01 | A10VSO71DFLR/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12N00 | A10VSO71DG/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12N00 | A10VSO71DRG/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12K02 | A10VSO71DFE1/31R-PPA12N00 |
| A10VSO71DFR/31R-PPA12N00 | A10VSO71FHD/31R-PPA12N00 |
| A10VSO71ED/31R-PPA12N00 | |
Siri A10VSO 100:, A10VSO100DR/31R-PPA12N00, A10VSO100DR/31R-PPA12K01, A10VSO100DFR1/31R-PPA12N 00, A10VSO100DFR1/31R-PPA12N00,, A10VSO100DFR1/31R-PPA12K01 A10VSO100DFR/31R-PPA12N{{101} },, A10VSO100DFLR/31R-PPA12N00, A10VSO100DG/31R-PPA12N00,, A10VSO100DRG/31R-PPA12N{ {330}}, A10VSO100DFE1/31R-PPA12N00,, A10VSO100DFE1/31R-PPA12K02, A10VSO100FHD/31R-PPA12N{{411}N } R902405606 A10VO100DFR1/31R-VSC62N00, R902411500 A10VSO45DFLR/31R-VPA12N00 145N R902424076, R902414086 R902429793 A10VSO140DFLR /31R-VPB12N00 265N R902431762 A10VSO28DFLR/31R-VPA12N00 35N, R902443895 A10VSO45DFLR/31R-VPA12N00 50N R9072D14K 8, R902459592 A10VSO140DFR1/31R-VPB12K68 R902460463 A10VSO1 00DFLR/31R-VPA12N00 140N, R902460861 A10VO45DFR1/31L-VSC62K68 R902460920 A10VSO28DFLR/31R-VPA12N104 12N00 50N R902460922 A10VSO45DFLR /31R-VPA12N00 100N, R902460923 A10VSO71DFLR/31R-VPA12N00 156N R902460924 A10VSO71DFLR/31R-VPA12N00 240N, R90312 N, R9032 -VPA12N{{ 195}}N R902460926 A10VSO100DFLR/31R-VPA12N00 200N, R902460927 A10VSO100DFLR/31R-VPA12N{{209}4}N R902{209}4}N R902 31R-VPA12N00 300N, R902460929 A10VSO140DFLR/31R-VPB12N00 300N R902460930 A10VSO140DFLR/31R-VPB12N00 24514001/23024N, R902460930 2K68 R902461113 A10VO28DFR1/31L-VSC62K01, R902461114 A10VO28DFR1 /31L-VSC62N00 R902461115 A10VO45DFR1/31R-VSC62K68, R902461116 A10VO71DFR1/31R-VSC62K01 R902461117 A10VO3117-A10VO3117-2017 1228 A10VSO45DFR1/31R-VPA12K68 R902461229 A10VSO71DFR1/31R-VPA12K68, R902461230 A10VSO1{ {585}}DFR1/31R-VPA12K68 R910903160 A10VSO28DFR/31R-PPA12N00, R910903163 A10VSO28DR/31R-PPA12N00 R91090}1{599}}1{599}}1{599}} 31R-PSC62N{ {620}}, R910907323 A10VO100DFR/31L-PSC62N00 R910907402 A10VO28DFR/31R-PSC62N00, R910907403}R910907403{100}{101} 907404 A10VO45DFR/31R- PSC62K01, R910907918 A10VO45DFR1/31R-PSC62K04 R910907919 A10VSO28DR/31R-PPA12K01, R910908655 A10VO28DFR/31R-PSC92K48/31R-PSC92K48 R-PPA12N00, R910909288 A10VO45DFR1/31L-PSC62N00 R910909613 A10VSO45DFR/31R-PPA12K01 , R910909949 A10VO45DFR/31L-PSC62K01 R910910181 A10VO45DFR1/31R-PSC62N00, R910910590 A10VSO28DFR1/31R-PPA712N DFR/31R-PPA12K26, R910911737 A10VO28DFR1/31R-PSC61N00 R910912{ {691}}7 A10VSO100DR/31R-PPA12N00, R910915421 A10VO28DR/31R-PSC62K01 R910916472 A10VO45DFR1/31L-PSC69101, RVO45DFR1/31L-PSC69101 -PSC62K01 R910920557 A10VO45DFR1/31R-PSC62K02, R910921546 A10VSO140DFR1 /31R-PPB12N00 R910922744 A10VSO100DFR1/31R-PPA12N00, R910922947 A10VO28DFR1/31L-PSC62K01 R9101/R9101 734}}, R910923181 A10VO28DFR1/31R- PSC62K01 R910926318 A10VSO28DFR1/31R-PPA12K01, R910927068 A10VSO45DFR1/31R-PPA12K02 R910927083 A10VSO100R09PPA100 0VSO140DFR1/31R-PPB12K02 R910932852 A10VSO140DRG/31R-PPB12N00, R910934823 A10VSO1{{756 }}DFLR/31R-PPA12N00 R910935974 A10VSO140DFLR/31R-PPB12N00, R910935975 A10VSO45DFLR/31R-PPA12N{{7109}30 R917800 R910935975 2N00, R910936062 A10VSO28DFLR/ 31R-PPA12N00 R910936094 A10VSO140DFLR/31R-PPB12N{{800}}, R910936130 A10VSO28DFLR/31R-PPA12N{{810}9DF6N{{810}9}12 1R-PPA12N{{ 829}}, R910936473 A10VSO100DFLR/31R-PPA12N00 R910936738 A10VSO100DFLR/31R-PPA12N001{858}}, R939453 A10VSO1 866}} R910936790 A10VSO100DFLR/31R-PPA12N00, R910936910 A10VSO45DFLR/31R-PPA12N00 R910936912 R910936912{910936912 A10VSO15DFLR 804 A10VSO18DFR1/31R-PUC62N{{926 }} R910938977 A10VSO140DFLR/31R-PPB12N00, R910939026 A10VSO28DFLR/31R-PPA12N00 R910939120 A10VO71{DPSC4}61}. R910939183 A10VSO45DFR/31R-PPA12N00 R910939192 A10VSO140DFR/31R-PPB12N00, R910939643 A10VSO1{{973}1}9D {985}}45 A10VO1{{ 992}}DFR1/31L-PSC62N00, R910940520 A10VSO18DFR/31R-PPA12N{{1004}} R910940582 A10VSO45DFLR/31R}{1011}}2N{1011}} 8DFR/31L-PSC62N{ {1035}} R910940936 A10VSO28DFLR/31R-PPA12N00, R910941109 A10VSO140DFLR/31R-PPB12N00 R910941617{1041}} R910941109 10942503 A10VSO18DR/31R-PPA12N00 R910942635 A10VSO71DFR/31R-PPA12N00, R910942654 A10VSO71DFLR/31R-PPA12N00 R910942696 A10VO28DFR1/3191 A10VO45DFR1/31R-PSC61N00 R910943468 A10VSO1{{ 1095}}DFLR/31R-PPA12N00, R910943655 A10VO45DFR/31R-PSC62N00 R910943841 A10VSO140DFLR/31R-PPB12N}{1107}} R910943841 A10VSO140DFLR/31R-PPB12N}{0 21}}DFLR/31R-PPA12N{ {1128}} R910944067 A10VSO71DFLR/31R-PPA12N00, R910944195 A10VO71DFR1/31L-PSC62N00 R910944441{1142}}, R910944195 A10VO71DFR1/31L-PSC62N00 R910944440{100}{101} 10944502 A10VSO71DFLR/31R-PPA12N00 R910944730 A10VSO71DFLR/31R-PPA12N00, R910945133 A10VSO71DR/31R-PPA12N00 R910945178 A10VSO18DFR1/15195 A10VO71DFR1/31R-PSC61N00 R910946188 A10VO71DFR/31L -PSC62N00, R910946661 A10VO71DFR1/31L-PSC62K01 R910947666 A10VSO18DFR/31L-PSC62N00, R910947870 DPS9067810DPS9067810DPS9067810D 72 A10VSO71DFR1/31R-PPA12K02 .R910948654 A10VSO71DFLR/31R-PPA12N00 R910948790 A10VSO71DFLR/31R-PPA12N00, R910961216 A10VSO71DFLR/31R-PPA12N00 R910970014{053}}14{053}}14PSFR10VO45R} 974886 A10VO60DFR1/52R-PSD61N{{1267 }} R910988126 A10VSO10DR/52R-PKC64N00, R910988128 A10VSO10DFR1/52R-PKC64N00 R910990406 A10988128{100}{101} 87 A10VSO10DFR1/52R-PPA14N00 A10VSO18DFR1/ 31R-PPB12N{{1300}}, A10VS018DFR1/31R-PPB12N00, A10VS018DR/31R-PPA12N00, A10VSO18DR/31R-PPB12N00, A10VS018DR/31R-PPA12N00, A10VSO18DR/31R-PPA18DR/31R-PPA328 -PPA12N00, A10VSO18DFR1/31R-PPB12NOO A10VS018DFR1/31R-PPB12NOO, A10VSO18DR/31R-PPA12N00, A10VSO28DR/32N6}1 -PPA12N00 , A10VO28DR/31R-PSC12N00, A10VSO28DRF1/31R-PSA12N00 A10VSO28DFR1/31R-PPA12N00, A10VSO28DFR1/12N1 PPA12N00 A10VSO28DFR/31R-PSA12N00, A10VO28DFR1/31L-PSC62N00, A10VO28DFR1/31R-PSC62N00 A10VS045DR/31R-PPA12N00, A10VSO45DR/31R-PPA12N00, A10VS045DFR1/30DFR1/2N00 A12N00, A10VSO45DFR1/31R-PPA12N00, A10VO45DFR1/31R-PSC62K02 A10VSO45DFR1/32R-PPB12N00 , A10VSO71DFR1/31R-PPA12N00, 2N00, A1OVSO71DFR1/31R-PPA12N00, A1OVS071DFR1/31R-PPA12N00 A10VSO71DFR1/31R- PPA12N00, A10VSO71DFR1/32R-VPB22U99, A10VSO71DFR1/31R-PPB12NOO EA10VSO71DR/31R-PPA12N00, A10VSO71DR/31R-PPA12N00, A10VSO12N00 0DR/31R-PPA12N00, A10VSO100DR/31R-VPA12N00, A10VS0100DR/31R-VPA12N00 A10VSO100DFR1/31R -PPA12N00, A10VS0100DFR1/31R-PPA12N00, A10VSO100DR/31R-PPA12N00 A10VSO100DFR1/31R-VPB12N00, A10VS0100DFR1/31R-PPA12N00 A10VSO100DFR1/31R-VPB12N00, A10VS0100DFR1/31R-PPA12N00 00 A10V0100DR/31R-PSC11N00, A10VS0100DR/31R-PTA12N00, A10VSO140D/31R-PPB12N00 A10VSO140DR/ 31R-PPB12N00, A10VS0140DR/31R-PPB12N00, E-A10VSO140DFR1/31R-PPA12N00 A10VSO140DFR1S/31R-PPB12N00, A10VSO110DFR1/31R-PPA12N00 -PPB12N00 A10VSO140DR/31R-PPB12N00, A10VS0140DR/31R-PPB12NOO, A10VSO140DR/31R- VPB12N00 A10VSO140DR/31R-VPB22U99, A10VSO140DFR1/31R-PPB12N00
